MINERAL STONEWOOL
Terrace Roof Board

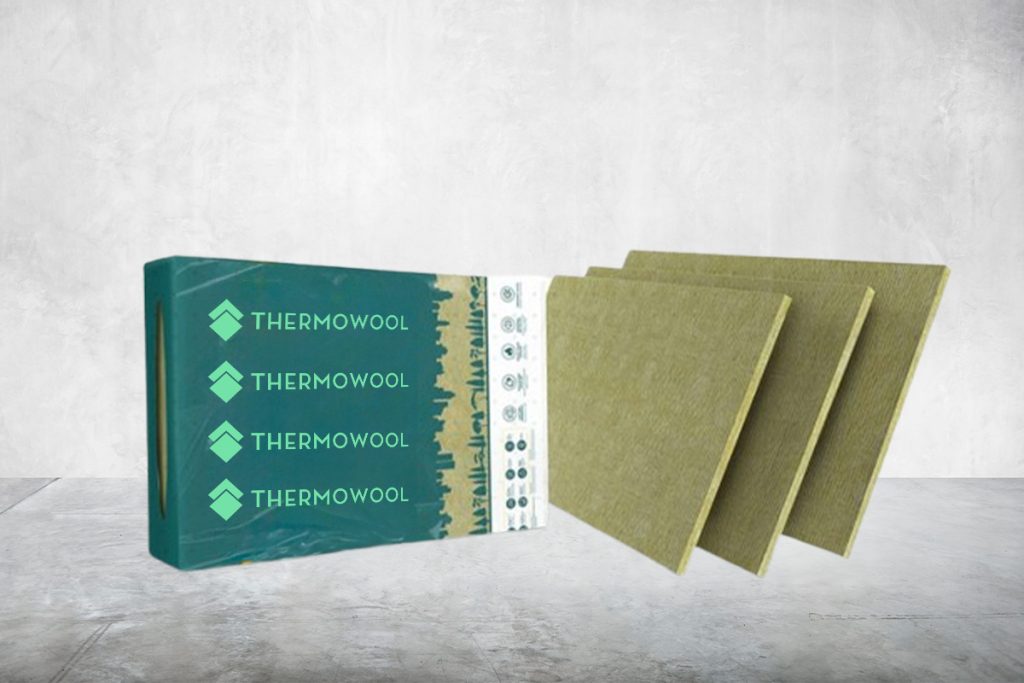

ThermoWool Terrace Roof Board is a high-performance insulation solution specifically designed for use on metal and wooden roofs, including terrace roofs that may or may not be walked on. It provides exceptional heat, sound, and moisture insulation, enhancing the overall energy efficiency of the building while ensuring long-term durability. This high-compressive strength stone wool board is ideal for both functional and aesthetic roofing applications, offering effective protection against environmental elements.
Key Features
✅ Enhanced Thermal Insulation: Effectively reduces heat transfer, improving energy efficiency and ensuring comfortable interior temperatures year-round.
✅ Superior Soundproofing: Provides excellent acoustic insulation, reducing noise transmission from external sources or other areas of the building.
✅ Moisture Control: Prevents water absorption, reducing the risk of structural damage and mold growth.
✅ High Compressive Strength: Built to support the weight of various roofing systems, offering long-lasting performance under pressure.
🔥 Fire-Resistant Composition: Made from non-combustible stone wool, it meets high fire safety standards.
🛠️ Durable & Long-Lasting: Designed for both accessible and inaccessible terrace roofs, maintaining its integrity under heavy loads and exposure to the elements.
Engineered for Terrace Roofs
ThermoWool Terrace Roof Board is designed to provide high-level insulation for both walkable and non-walkable terrace roofs. It seamlessly integrates with various roofing materials to deliver effective thermal regulation, sound isolation, and fire protection. Whether it’s a metal or wooden roof, this product guarantees superior performance while contributing to the overall sustainability of the building.
Ideal for residential, commercial, and industrial buildings, ThermoWool Terrace Roof Board offers reliable and long-term solutions for effective roof insulation and protection.
Technical Information
| Technical Characteristics | Symbol | Indicator | Unit | Declared Value | Tolerance | Standard |
|---|---|---|---|---|---|---|
| Material | MW | MW | - | Mineralwool | - | EN 13162 |
| Density / D | - | ρ | kg/m3 | 150 | ± % 10 | EN 1602 |
| Length / l | l | l | mm | 1200 | ± % 2 | EN 822 |
| Width / b | b | b | mm | 600 | ± % 1.5 | EN 1822 |
| Tension Force Perpendicular to Surface | TRi | σmt | kPa | ≥ 7.5 | - | EN 1607 |
| Compress Stress at %10 Deformation | CS(10/Y)i | σ10 | kPa | ≥ 30 | - | EN 826 |
| Thermal Conductivity | λD | - | W/mK | max 0.037 | - | EN 12939/12667 |
| Thermal Resistance / Rd | RD | - | m²K/W | 0.83 | 1.11 | 1.39 | 1.67 | 1.94 | 2.22 | 2.78 | 3.33 | 3.88 | 4.25 | - | EN 13162 |
| Thickness / d | dN | dN | mm | 30 | 40 | 50 | 60 | 70 | 80 | 100 | 120 | 140 | 150 | - | EN 823 |
| Class for Thickness Tolerances | Tİ | - | mm | 'T4 | -%3 or -3 mm * +%5 or +5 mm * | EN 823 |
| Dimensional Stability | DS(70-) | ∆Ɛd | % | max 1 | - | EN 1604 |
| Water Vapour Permeability / MU | MU | µ | - | 1 | - | EN 12086 |
| Fire Reaction Class | - | RtF | - | A1 | - | EN 13501 |
| Air Flow Resistance / Afr | Afr | Afr | - | NPD | - | EN 29053 |
| Flatness / Smax | Smax | Smax | mm | S6 - max 6 mm | - | EN 825 |
| Squareness / Sb | Sb | Sb | mm/m | S5 - max 5 mm/m | - | EN 824 |
| Short Term Water Absorption / WS | WP | WS | kg/m² | ≤1 | - | EN 1609 |
| Long Term Water Absorption / WL(P) | WLP | WL(P) | kg/m² | ≤3 | - | EN 12087 |
| Max. Usage Temperature | - | - | °C | +750 | - | - |
| Packaging Material | - | - | - | PE Film | - | - |
| Covering | - | - | - | Uncoated | - | - |
